CubeSat Star Tracker

Our ST200 CubeSat star tracker offers attitude determination in an incredibly small package. The ST200, developed by AAC Hyperion, is one of the world’s smallest and lightest fully autonomous, low power star trackers, aimed at applications in pico- and nano-satellite platforms

With an accuracy of 30 arcseconds and its extremely small size the ST200 can be used in practically every platform that requires attitude determination.

The ST200 is also suitable for applications on CubeSats as well as larger satellite platforms. For these applications, additional interfaces and power supply ranges are available. Optionally AAC Clyde Space offers standard size and mission-specific baffles.

The ST200 was co-developed by AAC Hyperion and Berlin Space Technologies.

Accuracy

With an accuracy of 30 arcseconds (3-sigma) and its extremely small size the ST200 can be used in practically every platform that required attitude determination.

Design

With its plug-and-play design and various baffle options available on demand the ST200 is the perfect star tracker to seamlessly integrate with AAC Hyperion’s line of integrated attitude determination and control systems.





Why the ST200?

  • TRL 9
  • 16-20 Week Lead Time
  • Flown Since 2015
  • Accuracy: 30 arcseconds (3-sigma)
  • Update rate: 5 Hz
  • TTL UART or RS422 interface
  • Power consumption: 650 mW (nominal)
  • Supply voltage: 3.65V (3.6 – 5.0V)
  • Various suitable baffle options are available on demand

Technical Specifications

Performance
Attitude determination accuracy (pitch; yaw) 30 arcseconds (3-sigma)
Attitude determination accuracy (roll) 200 arcseconds (3-sigma)
Update rate 5 Hz
Maximum slew rate (tip/tilt) < 0.3 °/s
Maximum slew rate (roll) < 0.6 °/s
Dimensions
Outer dimensions (mm) 29 x 29 x 38.1
Mass (excluding baffle) (g) 42
Optional baffle sun exclusion half angle (°) 30; 45
Environmental
Operating temperature (°C) -20 - +40.
Radiation tolerance (krad (Si)) 9
Equivalent shielding thickness (°) ≥ 1.5
Electrical
Min. Typ. Max.
Supply voltage (V) 3.6 - 34.0
Bus logic level voltage Referenced to VREF Referenced to VREF Referenced to VREF
Power consumption (mW) 370 700 1000

Related products

ANT-GPS-A
AAC SpaceQuest

ANT-GPS

The ANT-GPS-Series Antenna is a space qualified L-band patch antenna tuned to the GPS frequency bands. This antenna is ideal for MicroSats and SmallSats but can also be mounted recessed on CubeSats.
GNSS-701
AAC SpaceQuest

GNSS-701

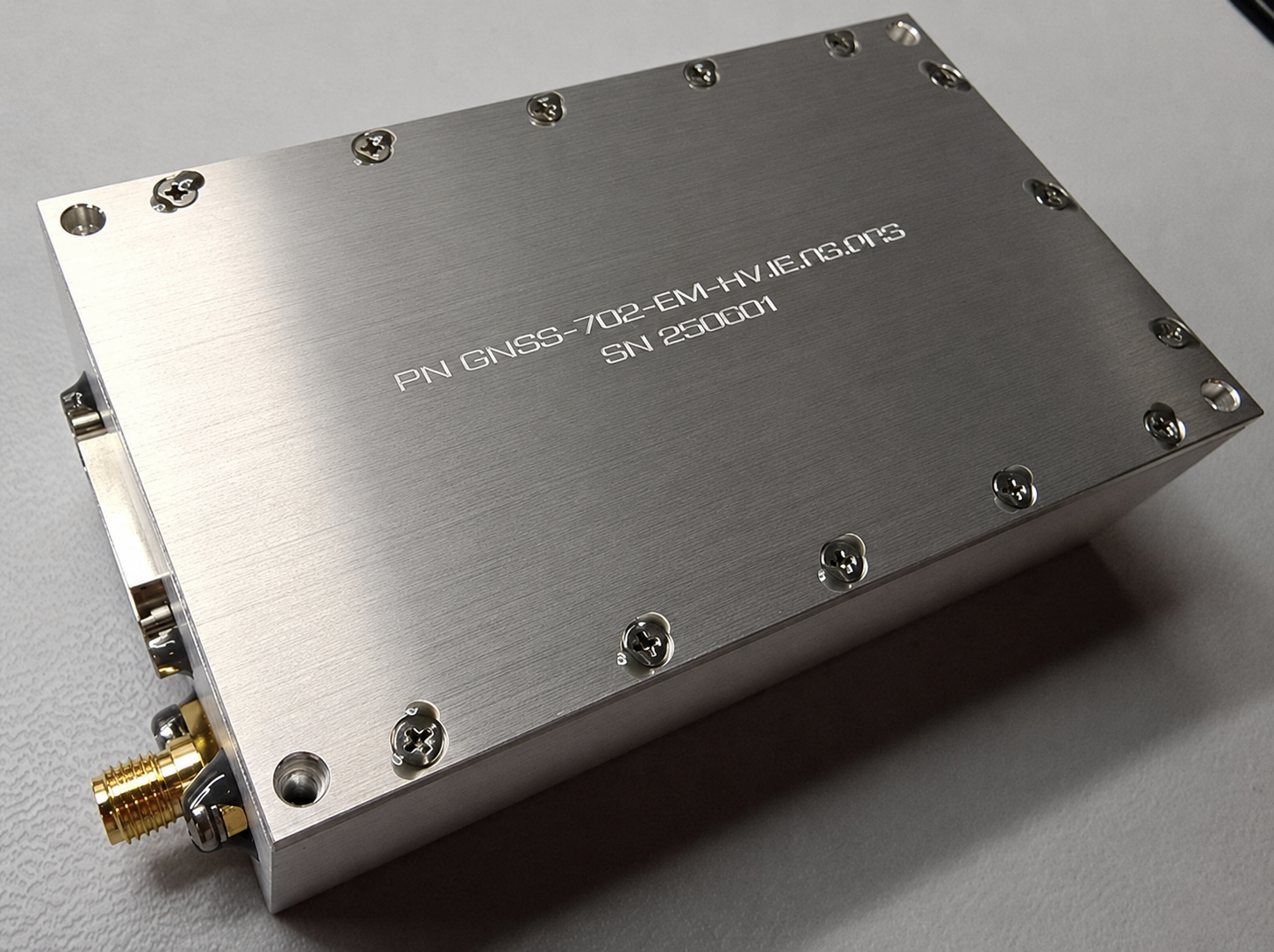

The AAC SpaceQuest GNSS-701 is a compact yet powerful satellite GNSS receiver, and is one of AAC SpaceQuest’s bestselling components of all time.
