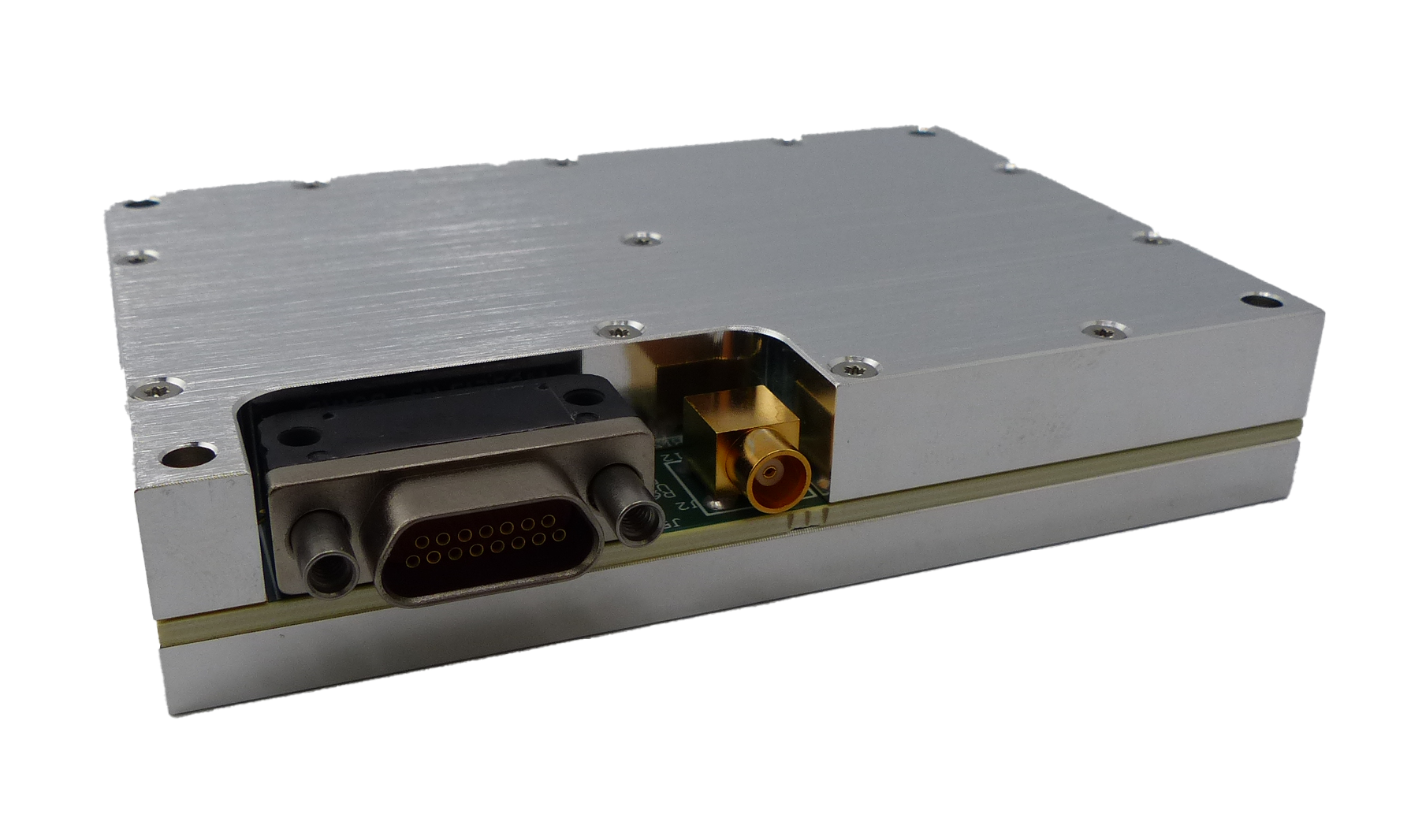

The next generation AAC SpaceQuest TRX-U is a compact single board transceiver for satellite communications in the UHF Band. Designed for CubeSat and SmallSat missions our high-performance TRX-U satellite UHF transceiver is ideal for space missions where a low data–rate uplink and downlink are required and can be used as a robust lower data-rate back-up radio for a higher data-rate radio.
The firmware of this legacy component is changeable on orbit enabling upgrades over the lifetime of a mission, avoiding natural decreases in performance and adaptability to changing mission requirements.
With up to 20 programmable channels, which can be custom programmed, this solution has been designed for ease of use and offers transmit and receive frequencies covering both amateur and commercial bands. The flight proven TRX-U is an ideal satellite TT&C Radio or Narrow Band Communication Payload for CubeSat and SmallSat missions.
These units have been extensively tested and are in use by clients around the world. They have been deployed on orbit in various configurations for close to two decades of successful operations.
Frequencies
With UHF uplink & downlink the TRX-U serves both the commercial and amateur frequencies respectively
Custom Configuration
The firmware of the component is changeable on-orbit enabling upgrades over the lifetime of a mission, thus avoiding natural decreases in performance. With up to 20 Channels, which can be custom programmed in 1KHz Steps. With transmit/receive data rates of 2.4 and 19.2 Kbps this solution is highly adaptable to meet your mission needs
Heritage
These units have been extensively tested and are in use by clients around the world. They have been deployed on orbit in various configurations for two decades of successful operations
Why the TRX-U?
| General | |
|---|---|
| Frequency | 370 MHz to 470 MHz |
| Transmit Power | 250mW – 5 Watts RF Output |
| Transmit Data Rate | Customer Defined Between 2.4 and 19.2 Kbps |
| Receive Data Rate | Customer Defined Between 2.4 and 19.2 Kbps |
| Channels | Channels 20 Channels @ 1KHz Steps |
| Modulation | FSK; GFSK |
| Electrical and RF Specifications | |
|---|---|
| Input Voltage | 3.3 to 42VDC |
| Power Consumption | RX: 250 mW |
| TX | 8W for >5W RF Output with 6V Input |
| Clock and Data Output | 3.3 Volt CMOS |
| Power and Data Connector | 15 Pin Micro-D Socket |
| RF Connector | MCX Socket |
| Nominal Sensitivity (BER 10-4) | -113 dBm @ 9600 bps ; -108 dBm @ 19.2 Kbps |
| Front-end Noise Figure | 2.5 to 3 dB w/ built-in LNA; filters; and TR-switch |
| Carrier Stability | 2.5 ppm from -230ºC to +80ºC |
| RF Impedance | 50 Ohms Nominal (Input and Output) |
| Max VSWR | >10:1 at All Phase Angles |
| Automatic Control | Built in AGC and AFC for Gain and Doppler Control |
| Digital RSSI | -120 dBm to 60 dBm |
| Mechanical and Environmental | |
|---|---|
| Mass | 125 grams |
| Size | 83 mm x 57 mm x 16 mm (3.27” x 2.25” x 0.63”) |
| Operating Temperature | -35ºC to +80ºC |
| Storage Temperature | -35ºC to +80ºC |
| Vibration | 14.1G RMS (20 – 2000Hz) per GEVS NASA Std |
