UHF/VHF Static Whip Antenna

The AAC SpaceQuest ANT-100 static whip antenna is tunable within the VHF and UHF frequency bands, and is designed for ease of use and reliability.

Our competitively priced low-cost ANT-100 static whip antenna are nanosatellite compatible and offer value for money.

Customisable

The ANT-100 offers users a flexible range of options. These minimalist non-deployable antennas can be configured in various lengths to accommodate a range of frequencies from VHF-UHF.

Rugged Design

The antennas are built with dependability in mind, specifically for the smallsat market. The minimalist design and quality materials used delivers reliability performance on orbit.

Flight Heritage

The units have over 15 years of successful on-orbit flight operations heritage on our AAC SpaceQuest spacecraft as well as being deployed for a global clientele.

Why the ANT-100?

  • Simple, Rugged and Flexible Whip Antenna
  • Omni-directional with Ground Plane
  • VHF, UHF, and S-band Frequencies
  • Easy Assembly and Mounting
  • White Bronze or Gold Coated
  • SMA RF Output
  • Space Qualified

Technical Specifications,

General
Beam Pattern Omni-directional With a Ground Plane
Bandwidth Approximately 7.5% of Center Frequency (2:1 SWR)
Impedance 50 Ohms
Mass 10 - 100 grams (Frequency Dependent)
Size 5” - 20” (Frequency Dependent)
Operating Temperature -40°C to +80°C (Storage: -50°C to +100°C)

Related products

S-band Antenna AC-2000
AAC SpaceQuest

AC-2000

The AAC SpaceQuest developed AC-2000 nanosatellite polarized S-band antenna has been designed with high performance and ease of system integration in mind. Its small size, low profile, rugged design and high directionality make it an excellent addition to the system.
Find out more
AAC Hyperion

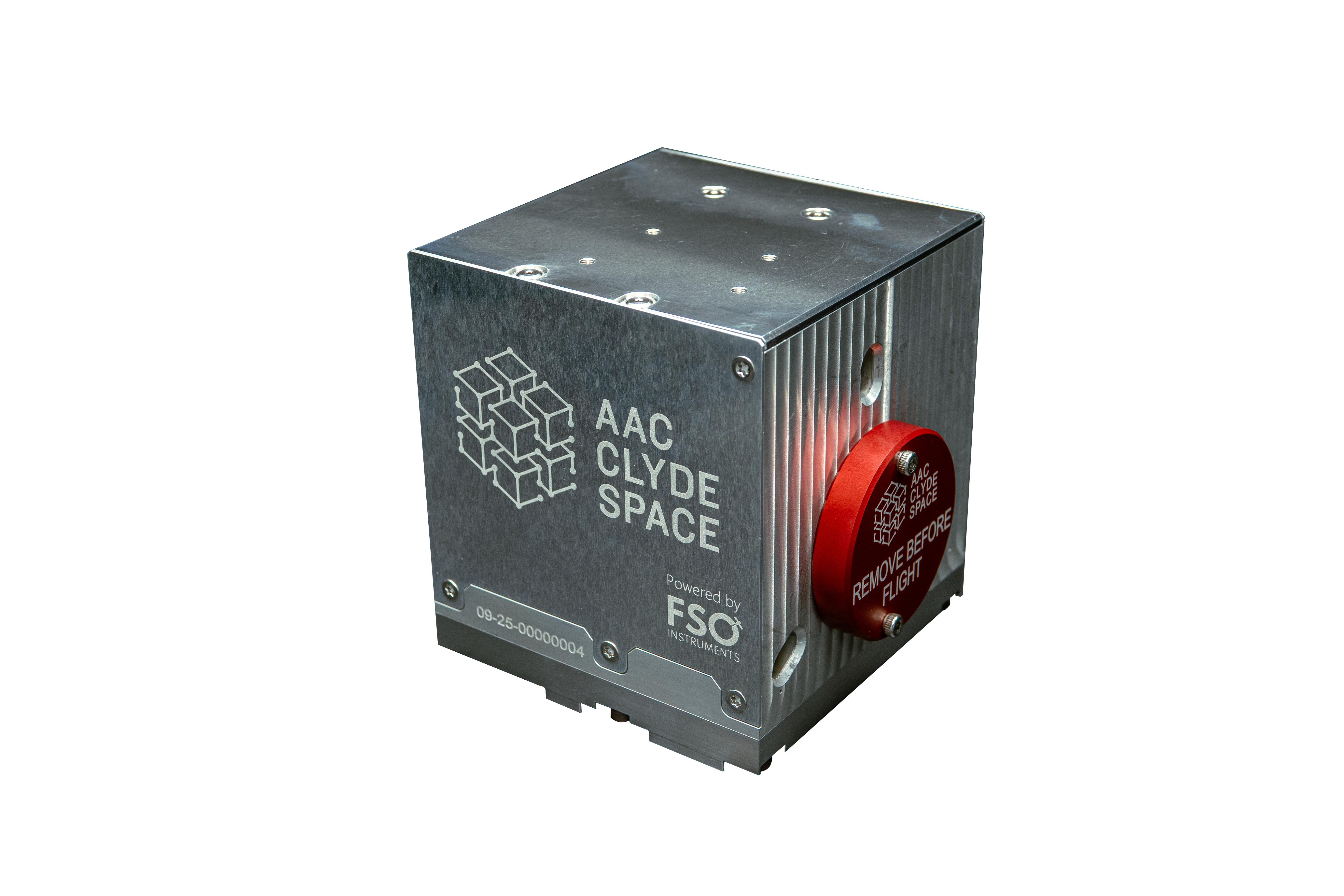

CubeCAT
