X-band Transmitter

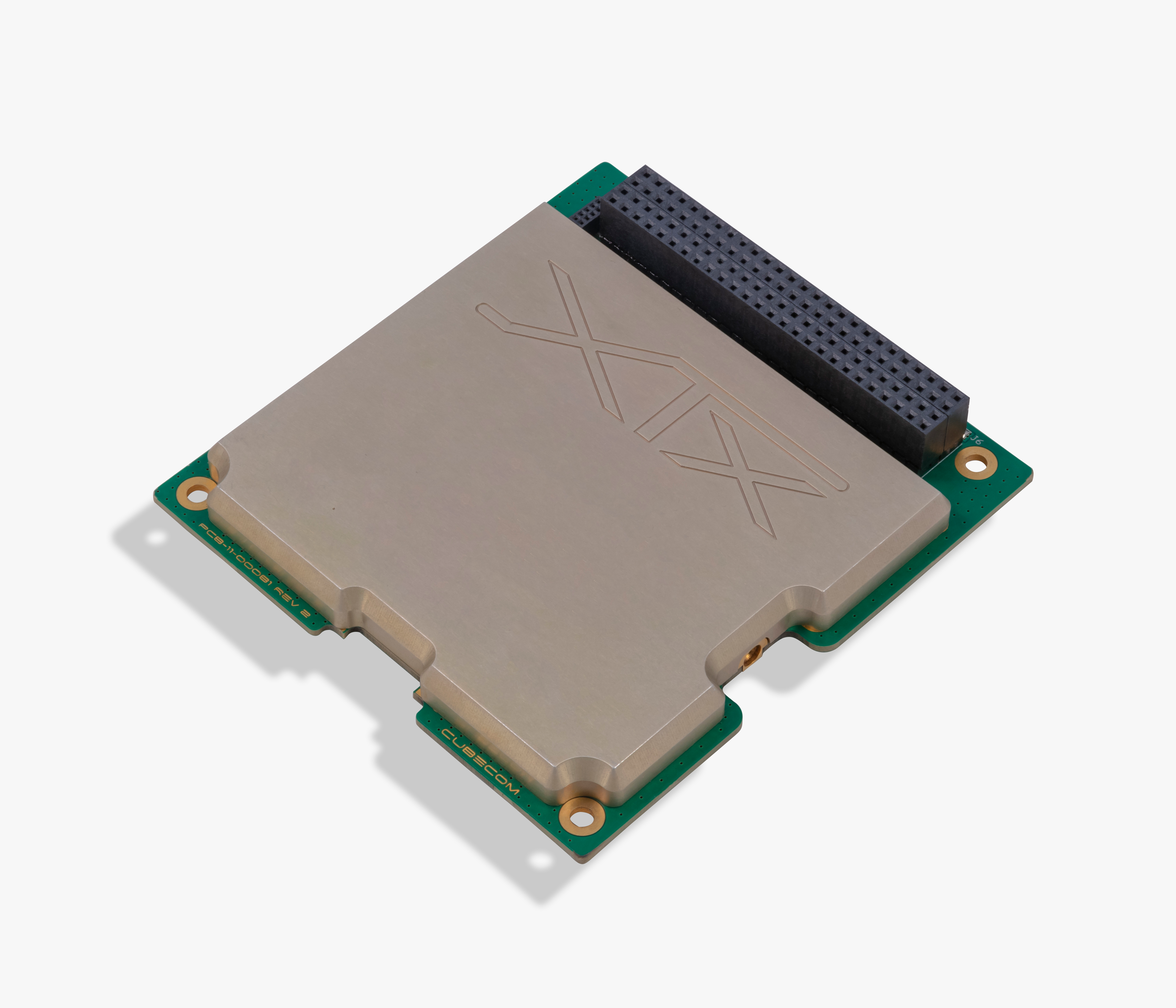

The PULSAR-XTX is an extremely compact X-Band transmitter designed for CubeSat missions. The transmitter implements OQPSK and QPSK modulation with transmission data rates of up to 50 Mbps.

The transmitter is ideal for space missions where a high data rate downlink is required. It implements a CCSDS specification which allows this product to be compatible with commercial off-the-shelf satellite demodulators. The PULSAR-XTX is in-flight configurable in 100kbps steps, covers the 8.025 – 8.375 GHz frequency range in-flight configurable in 1 MHz steps.

This solution has low power requirements with <10 W (for maximum RF power output) and is powered from unregulated battery bus or regulated 5V. The PULSAR-XTX solutions have been tried, tested and trusted on an array of on orbit missions proving to be not only reliable but efficient.

This solution is compatible with the CubeSat standard, with a CubeSat Kit PC/104 form factor. The Pulsar-XTX has extensive flight heritage and are compatible with our low profile X-Band patch antenna, which can be easily incorporated into the CubeSat design. Its small size, low profile, rugged design and high directionality make it an excellent addition to the system.

These solutions are supplied with user manuals, flight boards and STEP files for seemless system integration.

Frequencies

The PULSAR-XTX is in-flight configurable in 100kbps steps, covers the 8.025 – 8.375 GHz frequency range in-flight configurable in 1 MHz steps.

Performance

The PULSAR-XTX has a low power requirement of <10 W and is powered from unregulated battery bus or regulated 5V.

Reliability

The PULSAR-XTX solution has been tried, tested and trusted on an array of on orbit missions proving to be not only reliable but efficient.

Why the PULSAR-XTX?

  • Low power consumption
  • Total power consumption < 10 W (for maximum RF power output)
  • Powered from unregulated battery bus or regulated 5V
  • Transmission data rates from 10 to 50 Mbps
  • In-flight configurable in 100kbps steps, covers the 8.025 – 8.375 GHz frequency range in-flight configurable in 1MHz steps
  • User programmable within bands
  • Industry standard encoding and modulation techniques
  • Compatible with low-cost commercial demodulators
  • Based on CCSDS specification
  • QPSK or OQPSK
  • Transmit output power adjustable from 27dBm to 33dBm in 1dB steps
  • Compatible with our S-Band Patch Antenna
  • A range of high-performance PULSAR antennas available
  • Supports both amateur and commercial bands
  • Compatible with all AAC Clyde Space Zaphod Structures”

Technical Specification

General
Temperature -25°C to +61°C
Power Consumption < 15 W
Mass < 130 g
Input Voltage 6.2 V - 17 V
Frequency 8.025 GHz – 8.375 GHz
Maximum RF Power 2 Watt (33 dBm)
Channel Spacing Frequency 1 MHz
TX SNR > 20 dB
Spurius Response < -60 dBc
Design Life 2 years in LEO
Transmit Frequency Stability 50 ppm
Output Spectral Mask SFCG 21-2R4
Configuration HPA included (2W)
Unit Telemetries 3x currents sensors - 3x temperature sensors - RF Power P-LL status
Tx Data Rate 10-50 Mbps
Dimensions
Length 96 mm
Width 90 mm
Height 11.7 mm

Related products

S-band Antenna AC-2000
AAC SpaceQuest

AC-2000

The AAC SpaceQuest developed AC-2000 nanosatellite polarized S-band antenna has been designed with high performance and ease of system integration in mind. Its small size, low profile, rugged design and high directionality make it an excellent addition to the system.
AAC SpaceQuest

ANT-100

The AAC SpaceQuest ANT-100 is a static whip antenna is tuneable within the VHF and UHF frequency bands and is designed for ease of use and reliability.  Designed for ease of use, assembly and mounting, our space qualified antenna utilises VHF, UHF, and S-band Frequencies
AAC Hyperion

CubeCAT

Compact, high throughput, optical laser communication terminal for use in CubeSats and small satellites. CubeCAT enables a bidirectional space-to-ground communication link between a CubeSat and an optical ground station, with downlink speeds of up to 1 Gbps and uplink data rate of 200 Kbps.
GD200
AAC Hyperion

GD200 GIGABIT DETECTOR

The GD200 Gigabit Detector is a compact, high-speed optical-to-digital converter, used in optical ground stations, currently capable of receiving data rates up to 1 Gbps. Developed for nanosatellites, this laser communication solutions converts data contained in digital laser signals into a digital bitstream, ready to be processed by a high-speed data handling system.

Pulsar-SANT

Our nadir facing PULSAR-SANT S-Band patch antenna can be incorporated into the CubeSat design. Its small size, low profile, rugged design and high directionality make it an excellent addition to the system.
Pulsar STX

PULSAR-STX

Available for a limited time only, AAC Clyde Space are now offering our Pulsar-STX Transmitter & Pulsar-SANT S-Band Antenna as a CubeSat/SmallSat Communications Bundle. Looking for communications solutions for your mission quickly, then look no further. Our new limited-time product bundle is available to buy now.
Pulsar UTRX

Pulsar-UTRX

The PULSAR-UTRX transceivers are ideal for space missions where reliable uplink and downlink is required and can be used as a robust lower data-rate back-up radio for a higher data-rate radio
Pulsar UTRX

Pulsar-VUTRX

The Pulsar-VUTRX transceivers are ideal for space missions where reliable uplink and downlink is required and can be used as a robust lower data-rate back-up radio for a higher data-rate radio

Pulsar-XANT

The Pulsar-XANT is a low profile X-Band patch antenna designed for CubeSat missions where a high data rate downlink is required
RX-200
AAC SpaceQuest

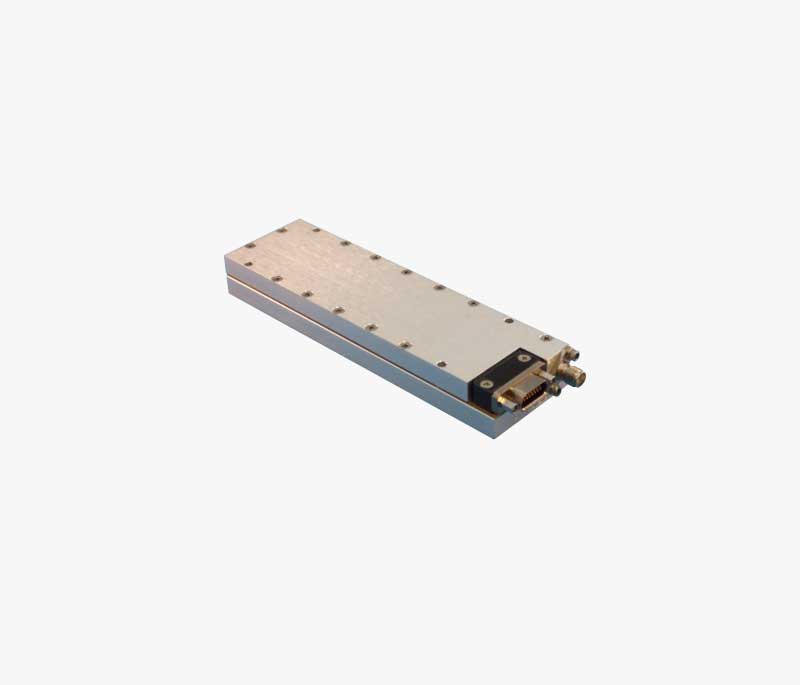

RX-2000

Our adaptable low-power RX-2000 S-band transceiver is designed to offer high data rates and support various data interfaces and modulation schemes. The AAC SpaceQuest RX-2000 have been in operation on-orbit for over 30 years for their own satellite and for a wide range of blue-chip clients around the globe.
TRX-U
AAC SpaceQuest

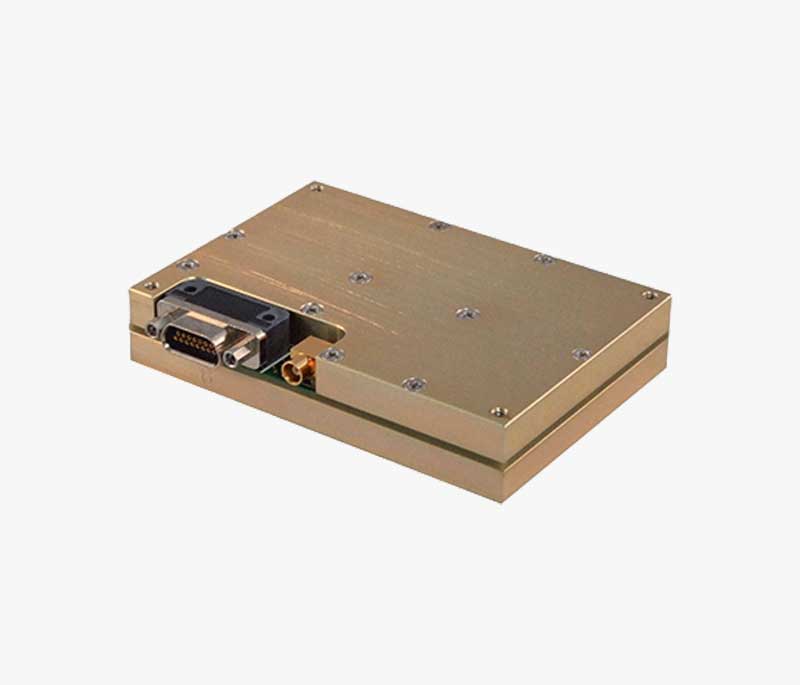

TRX-U

Designed for Cubesat and smallsat missions our compact high performance TRX-U Satellite UHF Transceiver is ideal for space missions where a low data–rate uplink and downlink are required.
S-Band Transmitter
AAC SpaceQuest

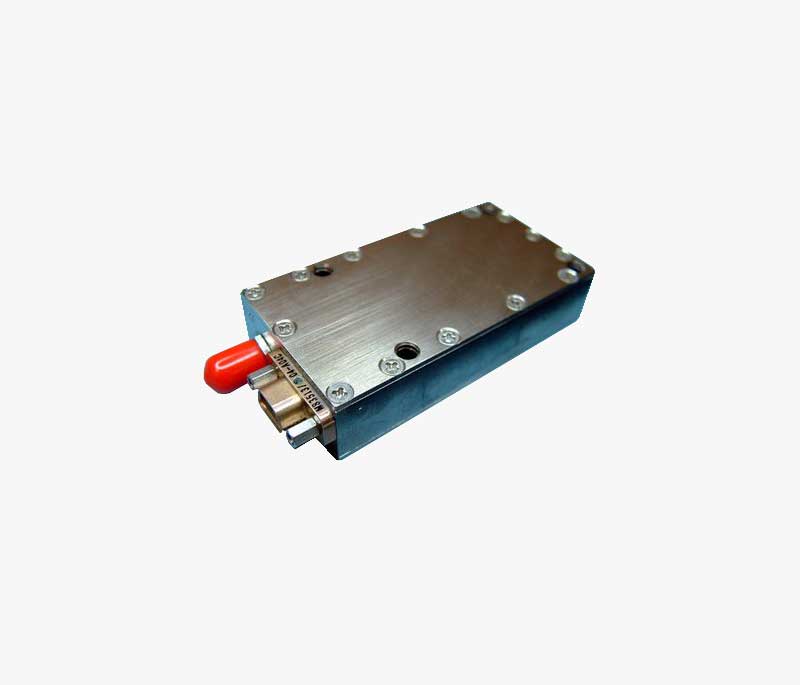

TX-2400
